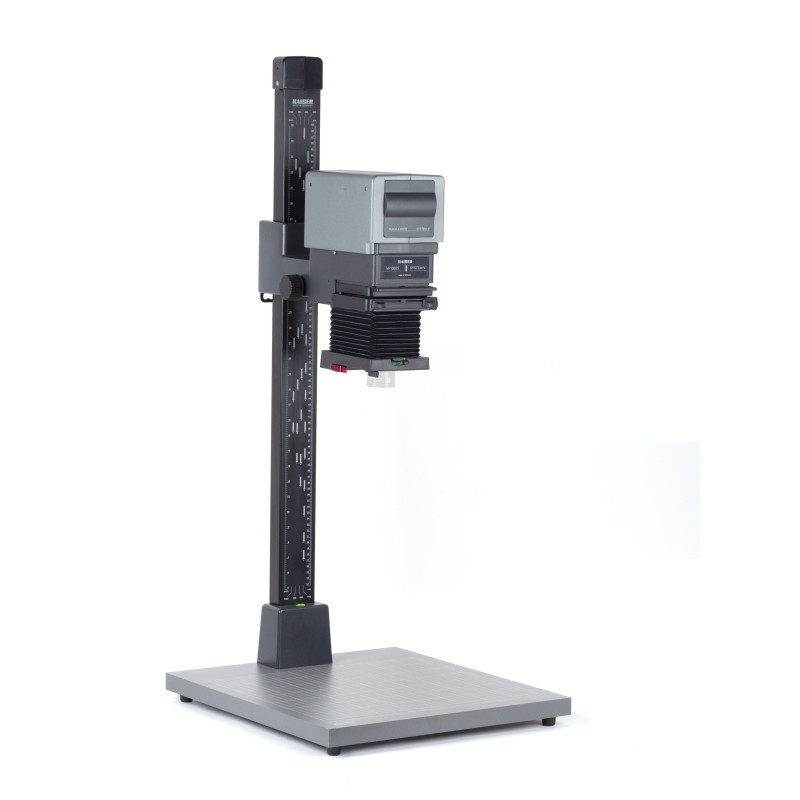

Kaiser VP 6005 (6x6cm), Enlarger

Enlarger head with removable compound negative carrier, fitted with Anti-Newton glass on top and 6 x 6 format mask on bottom, interchangeable with the additional supplied pair of masks 24 x 36 mm (35 mm). 75 W opal lamp. Filter drawer, e.g. for Multigrade® filters. Exchangeable double condenser up to 6 x 6 cm. Lens panel with spirit level and red filter, tiltable for distortion correction on Scheimpflug principle. Quick change attachment for lenses. Height adjustment by hand-crank. Wall and floor projection possible. Supplied without lens.

Wide, vibration-resistant column. Matt gray laminated baseboard with printed fine grid and height-adjustable feet.

Specifications:

Column (HxWxD): approx. 1000 x 70 x 35 mm (39.4 x 2.8 x 1.4 in.)

Baseboard (WxHxD): approx. 450 x 28 x 500 mm (17.7 x 1.1 x 19.7 in.)

Lamp: opal lamp 75 W, E27

Filter drawer: 85 x 85 mm (3.3 x 3.3 in.)

Distance between optical axis and column base: approx. 220 mm (8.7 in.)

Cord: approx. 2.50 m (8.2 ft.)

Scope of supply:

Enlarger with compound negative carrier, equipped with Anti-Newton glass / format mask 6 x 6 cm (4434), format masks 24 x 36 mm, opal lamp, diffusion screen for filter drawer, two lens holder rings. Without lens.

Additional information about the VP 6005 SYSTEM-V B & W Enlarger:

Lighting head with 75 watt opal lamp, lamp adjustable. Filter drawer for inserting 8.5 x 8.5 cm filters (e.g. Multigrade® filters); with diffusion screen for homogeneous light distribution.

Removable compound negative carrier with interchangeable inserts, adjustable masking strips, adjustable film stops and registering pins. Incl. pair of inserts format mask 6 x 6 cm / Anti-Newton glass and format masks 24 x 36 mm. More format masks and glass inserts are available as optional accessories.

Double condenser for formats up to 6 x 6 cm, interchangeable with double condenser for formats up to 6 x 9 cm (4449).

Lens panel with spirit level and slidable red filter, tiltable for distortion correction on Scheimpflug principle. Quick change attachment for easy lens mounting with lens holder ring.

Height adjustment by hand-crank operated friction drive on plastic bearings.

Wall projection. For this purpose, the enlarger head can be swiveled by 90° at the supporting arm.

Floor projection. For this purpose, the column can be mounted in the column base turned by 180°.

Wide, vibration-resistant column of dull black anodized aluminum tubing, with cm and inch scales and markings for magnification factors.

Non-reflecting, matt gray laminated baseboard with printed fine grid and cm and inch scale and cast aluminum base for the column. Individually height-adjustable feet. Spirit level in the column base.

Compatible with other SYSTEM-V components (e.g. wall mount, longer column, bigger baseboard).

Can be converted into a copy stand in just a few simple steps. To do this, the enlarger head is replaced with a camera arm from the R1 Copy System. If required, a lighting unit from the R1 Copy System can be attached to the baseboard.
